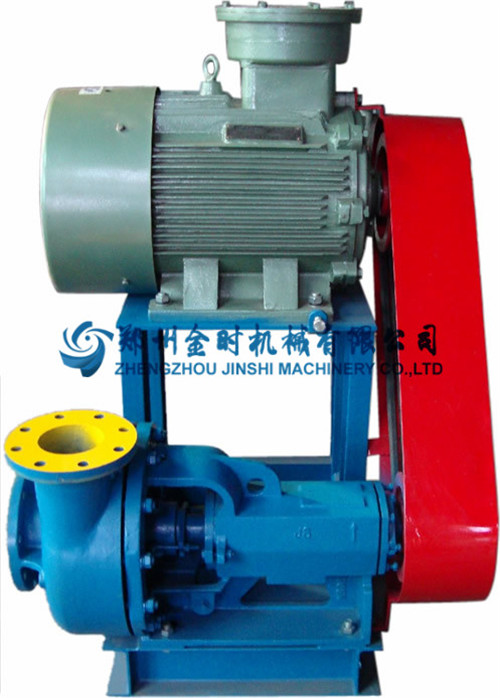

JQB series shearing pump

Time:2019-05-07




. Usage and Application Range

As one very important equipment within the drilling fluid circulating system, JQB series Shearing Pumps perform the dual function of cutting and pumping,  making the drilling fluid ideally suited for every drilling requirements of reducing solids size and protection of it’s downstream equipments.

Featuring our unique, high efficiency anti-fouling chopping impeller, they simultaneously shear and pump the most difficult solids, reduce bentonite cost more than 20%, moreover, significantly improve the filtration loss property and mud cake quality to generate a better gelatification effect, more effectively protecting the bore wall and prevent from production zone contamination.

Main features and benefits as follows:

1. Maintain and enhance the excellent hydration effect of bentonite particles. Shearing pumps effectively accelerate the dispersion of bentonite to increase the surface contact area and ion exchange frequency of the particles, thereby to generate a better hydration velocity and drilling fluid rheological property. Particularly for offshore drilling with sea water drilling fluid.

2. Speed up the dilution and hydration of polymer chemicals.

Prior to entering into the drilling fluid, polymer are chopped and reduced in size with ideal efficiency to keep polymer particles perfectly contact with water,  finally to accelerate the dissolving, dispersion and hydration process .Using shearing pump to treat the drilling fluid is favorable for increasing drilling operation,improving quality of drilling fluid, reducing the drilling cost and time,and reducing the labor intensity.

Ⅱ. Parameters

Model

JQB80

JQB100

JQB120

Discharge capacity

80 m3/h

100 m3/h

120m3/h

Pump Head

36 m

40 m

45m

Shearing efficiency

95%

95%

95%

Motor power

37 kW

45 kW

55 kW

Rotate speed of   impeller

2200rpm

2200rpm

2200rpm

Inlet diameter

6″

6″

6″

Outlet diameter

5″

5″

5″

Weight

955kg

1050kg

1155kg

Overall dimensions

1010×995×1440mm

1010×995×1440mm

1046×995×1470mm
