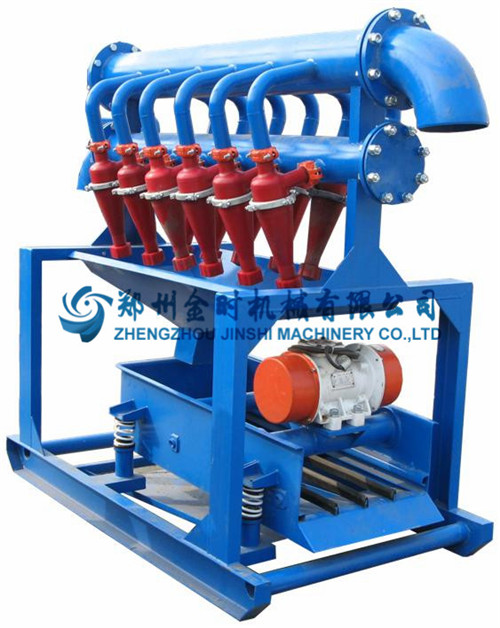

JZQJ100×12 desilter

Time：2019-05-07

Ⅰ. Usage & application scope

JZQJ series Desilter is a key member of solids control equipments of drilling fluid that efficiently handle the desander underflow.Its solids control capacity is 30%~50% higher than the past desilter,and it can lead to high drilling speed with low cost.

As a solids control equipment of the third stage in drilling operation,desilter is used to remove harmful solid particles of 20-40μm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration,by use of working principle of centrifugal subsidence.

At present time, three types JZQJ100×12,JZQJ100×14 and JZQJ100×16,are available,and we can add or reduce the swirler number according to the customer’s requirements.

Ⅱ. Main parameters

Model	JZQJ100×12	JZQJ100×14	JZQJ100×16
Cyclone cylinder diameter	100 mm	100 mm	100 mm
Working pressure	0.2～0.45 MPa	0.2～0.45 MPa	0.2～0.45 MPa
Capacity	160-200 m³/h	200-220 m³/h	200-240 m³/h
Screen size	1240×585 mm	1240×585 mm	1240×585 mm
Screen spec	120-200 mesh	120-200 mesh	120-200 mesh
Inlet diameter	6″	6″	6″
Outlet diameter	8″	8″	8″
Motor power	0.5 kW	0.5 kW	0.5 kW
Weight	720 kg	740 kg	780 kg
Overall dimensions	2546×1136×2085	2646×1136×2085	2866×2018×2085
