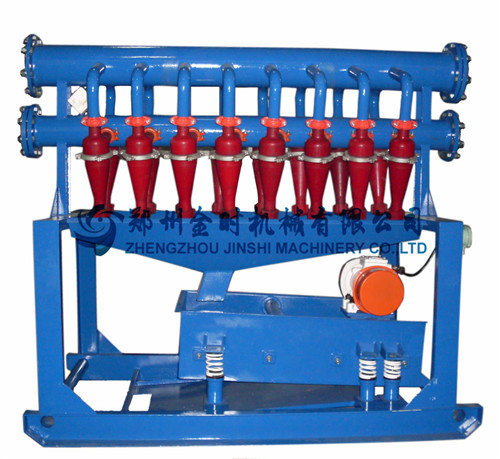

JZQJ100×16 desilter

Time:2019-05-07


. Usage & application scope

JZQJ series Desilter is a key member of solids control equipments of drilling fluid that efficiently handle the desander underflow.Its solids control capacity is 30%~50% higher than the past desilter,and it can lead to high drilling speed with low cost.

As a solids control equipment of the third stage in drilling operation,desilter is used to remove harmful solid particles of 20-40μm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration,by use of working principle of centrifugal subsidence.

At present time, three types JZQJ100×12,JZQJ100×14 and JZQJ100×16,are available,and we can add or reduce the swirler number according to the customer’s requirements.

. Main parameters

Model

JZQJ100×12

JZQJ100×14

JZQJ100×16

Cyclone cylinder   diameter

100 mm

100 mm

100 mm

Working pressure

0.20.45 MPa

0.20.45 MPa

0.20.45 MPa

Capacity

160-200 m3/h

200-220 m3/h

200-240 m3/h

Screen size

1240×585 mm

1240×585 mm

1240×585 mm

Screen spec

120-200 mesh

120-200 mesh

120-200 mesh

Inlet diameter

6″

6″

6″

Outlet diameter

8″

8″

8″

Motor power

0.5 kW

0.5 kW

0.5 kW

Weight

720 kg

740 kg

780 kg

Overall dimensions

2546×1136×2085

2646×1136×2085

2866×2018×2085
